Mobile Scissor Lift Platforms – LÖWE Profi SAB6.0 / SAB8.0 / SAB10.0 / SAB12.0 / SAB14.0

The LÖWE Profi SAB series consists of semi-electric scissor lift platforms designed for professional use in industry, construction, maintenance and building services.

The machines combine an electric lifting drive with hydraulic technology and a manually maneuverable design, providing a robust, economical and user-friendly solution for elevated work. The series is designed for reliability, safety and long service life.

Available models cover 6 m, 8 m, 10 m, 12 m and 14 m platform heights, with maximum working heights of up to 16 m depending on the model.

Key Features

Semi-electric operation
Electric lifting through a powerful hydraulic system combined with manual movement of the platform. This configuration provides flexible operation with relatively low maintenance requirements.
High-quality hydraulic system
Multiple hydraulic cylinders with durable, leak-resistant seals provide smooth, stable and controlled lifting.
Emergency lowering function
An integrated emergency lowering valve allows the platform to be lowered manually in the event of a power interruption.
Overload and pressure protection
Built-in pressure relief valves protect the hydraulic system against overload and contribute to operational safety.
Robust steel construction
Heavy-duty scissor arms, frame and platform are manufactured from high-quality steel profiles for stability and long service life.
Smooth operation and reduced vibration
Precision-engineered guide rails with nylon sliders provide stable lifting with minimal movement.
Simple and safe controls
Intuitive up/down controls with 36 V low-voltage technology for safe operation.
Spacious working platform
The platform provides sufficient space for operators, tools and materials. A platform extension is available for additional working reach.
Stable positioning
Robust support legs and reliable tires provide secure positioning during operation.
Durable surface treatment
The steel structure is blast-cleaned and finished with an electrostatic powder coating for corrosion resistance, scratch resistance and color stability.
Robust tires
Durable tires provide good stability, maneuverability and controlled movement on paved surfaces.

Typical Applications

The LÖWE Profi SAB series is suitable for:

Maintenance and servicing
Assembly and installation work
Warehouses and production facilities
Building services and facility management
Exhibition, event and hall construction
Indoor applications
Outdoor applications on paved surfaces

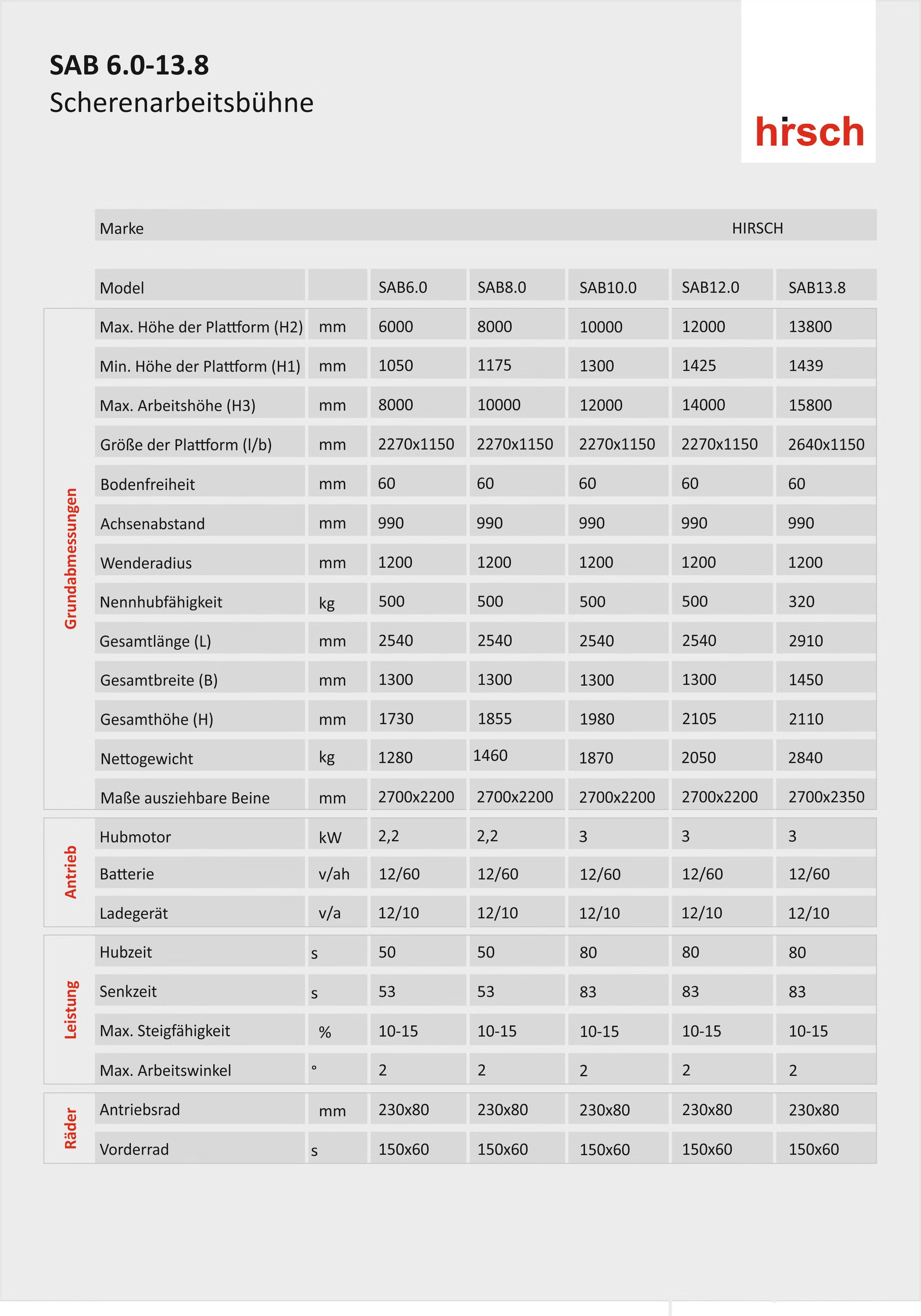

Technical Specifications

Profi SAB6.0

Specification	Value
Maximum platform height	6 m
Maximum working height	8 m
Rated load capacity, platform	500 kg
Platform extension load capacity	113 kg
Platform dimensions (L × W × H)	2.27 × 1.12 × 1.13 m
Overall dimensions, guardrails raised (L × W × H)	2.43 × 1.22 × 2.28 m
Overall dimensions, guardrails lowered (L × W × H)	2.43 × 1.22 × 1.71 m
Platform extension	0.9 m
Minimum ground clearance	0.10 / 0.02 m
Wheelbase	1.89 m
Turning radius, inner / outer	0.4 / 2.4 m
Lift / drive motor	24 V / 3.3 kW
Lifting speed	6–9 m/min
Travel speed, lowered	3.5 km/h
Travel speed, raised	0.8 km/h
Battery	4 × 6 V / 200 Ah
Charger	24 V / 30 A
Gradeability	25%
Maximum working inclination	1.5° / 3°
Tires	Ø 381 × 127 mm
Tire type	Pneumatic tires
Total weight	2,150 kg

Profi SAB8.0

Specification	Value
Maximum platform height	8 m
Maximum working height	10 m
Rated load capacity, platform	500 kg
Platform extension load capacity	113 kg
Platform dimensions (L × W × H)	2.27 × 1.12 × 1.13 m
Overall dimensions, guardrails raised (L × W × H)	2.469 × 1.20 × 2.344 m
Overall dimensions, guardrails lowered (L × W × H)	2.469 × 1.182 × 1.843 m
Platform extension	0.9 m
Minimum ground clearance	0.10 / 0.02 m
Wheelbase	1.89 m
Turning radius, inner / outer	0 / 1.7 m
Lift / drive motor	24 V / 3.3 kW
Lifting speed	6–9 m/min
Travel speed, lowered	3.5 km/h
Travel speed, raised	0.8 km/h
Battery	4 × 12 V / 103 Ah
Charger	24 V / 30 A
Gradeability	25%
Maximum working inclination	1.5° / 3°
Tires	Ø 381 × 127 mm
Tire type	Pneumatic tires
Total weight	2,500 kg

Profi SAB10.0

Specification	Value
Maximum platform height	10 m
Maximum working height	12 m
Rated load capacity, platform	450 kg
Platform extension load capacity	113 kg
Platform dimensions (L × W × H)	2.27 × 1.12 × 1.10 m
Overall dimensions, guardrails raised (L × W × H)	2.43 × 1.20 × 2.55 m
Overall dimensions, guardrails lowered (L × W × H)	2.43 × 1.22 × 1.97 m
Platform extension	0.9 m
Minimum ground clearance	0.10 / 0.02 m
Wheelbase	1.89 m
Turning radius, inner / outer	0 / 1.7 m
Lift / drive motor	24 V / 3.3 kW
Lifting speed	6–9 m/min
Travel speed, lowered	3.8 km/h
Travel speed, raised	0.8 km/h
Battery	4 × 12 V / 103 Ah
Charger	24 V / 30 A
Gradeability	25%
Maximum working inclination	1.5° / 3°
Tires	Ø 381 × 127 mm
Tire type	Pneumatic tires
Total weight	2,500 kg

Profi SAB12.0

Specification	Value
Maximum platform height	10 m
Maximum working height	12 m
Rated load capacity, platform	320 kg
Platform extension load capacity	113 kg
Platform dimensions (L × W × H)	2.273 × 1.126 × 1.10 m
Overall dimensions, guardrails raised (L × W × H)	2.43 × 1.22 × 1.97 m
Overall dimensions, guardrails lowered (L × W × H)	2.43 × 1.22 × 1.97 m
Platform extension	0.9 m
Minimum ground clearance	0.10 / 0.02 m
Wheelbase	1.89 m
Turning radius, inner / outer	0 / 1.7 m
Lift / drive motor	24 V / 3.3 kW
Lifting speed	6–9 m/min
Travel speed, lowered	3.5 km/h
Travel speed, raised	0.8 km/h
Battery	4 × 12 V / 103 Ah
Charger	24 V / 30 A
Gradeability	25%
Maximum working inclination	1.5° / 3°
Tires	Ø 381 × 127 mm
Tire type	Pneumatic tires
Total weight	2,500 kg

Profi SAB14.0

Specification	Value
Maximum platform height	12 m
Maximum working height	14 m
Rated load capacity, platform	227 kg
Platform extension load capacity	113 kg
Platform dimensions (L × W × H)	2.64 × 1.12 × 1.13 m
Overall dimensions, guardrails raised (L × W × H)	2.80 × 1.39 × 2.66 m
Overall dimensions, guardrails lowered (L × W × H)	2.80 × 1.39 × 2.09 m
Platform extension	0.9 m
Minimum ground clearance	0.10 / 0.02 m
Wheelbase	2.26 m
Turning radius, inner / outer	0.45 / 2.9 m
Lift / drive motor	24 V / 4.5 kW
Lifting speed	6–9 m/min
Travel speed, lowered	2.7 km/h
Travel speed, raised	0.8 km/h
Battery	4 × 6 V / 200 Ah
Charger	24 V / 30 A
Gradeability	25%
Maximum working inclination	1.5° / 3°
Tires	Ø 381 × 127 mm
Tire type	Non-marking solid tires
Total weight	3,210 kg

Model Comparison

Specification	Profi SAB6.0	Profi SAB8.0	Profi SAB10.0	Profi SAB12.0	Profi SAB14.0
Maximum platform height	6 m	8 m	10 m	12 m	14 m
Maximum working height	8 m	10 m	12 m	14 m	16 m
Load capacity	500 kg	500 kg	450 kg	320 kg	227 kg
Platform dimensions (L × W × H)	2.27 × 1.12 × 1.13 m	2.27 × 1.12 × 1.13 m	2.27 × 1.12 × 1.10 m	2.273 × 1.126 × 1.10 m	2.64 × 1.12 × 1.13 m
Overall dimensions, guardrails raised (L × W × H)	2.43 × 1.22 × 2.28 m	2.469 × 1.20 × 2.344 m	2.43 × 1.20 × 2.55 m	2.43 × 1.22 × 1.97 m	2.80 × 1.39 × 2.66 m
Total weight	2,150 kg	2,500 kg	2,500 kg	2,500 kg	3,210 kg
Turning radius, inner / outer	0.4 / 2.4 m	0 / 1.7 m	0 / 1.7 m	0 / 1.7 m	0.45 / 2.9 m
Platform extension	0.9 m	0.9 m	0.9 m	0.9 m	0.9 m
Gradeability	25%	25%	25%	25%	25%
Travel speed, lowered	3.5 km/h	3.5 km/h	3.8 km/h	3.5 km/h	2.7 km/h
Travel speed, raised	0.8 km/h	0.8 km/h	0.8 km/h	0.8 km/h	0.8 km/h
